Recently I came across a great article on publishing Exchange 2010 with TMG, I use this article in the production environment and it worked perfectly and I thought its worth having the these links at my blog.
http://rdpfiles.com/2011/08/15/publishing-exchange-2010-with-tmg/
http://rdpfiles.com/2011/08/15/publishing-exchange-2010-with-tmg-2/
http://rdpfiles.com/2011/08/15/publishing-exchange-2010-with-tmg-3/
regards,
Krishna 🙂
One of the main purposes of Lync is IM and presence in the organization. The main idea is to initiate IM conversation on whichever the client you are and also to know the presence status if user is available for chat and kick the chat conversation. The main and cool idea of Microsoft is to integrate all its application and that’s been one of the key successes with Lync and Exchange.
Lync 2010 IM and Presence Integration with Outlook
Prerequisites:
1. Deployed Microsoft Exchange Server 2010 and Lync Server 2010.
2. Lync Frontend pool where user is located and client Access server can connect
3. Lync and mailbox enabled users
Lync 2010 IM and presence integration with outlook is automatically performed when you install Lync client on the work satiation. Lync client installs all the necessary add-ins for the outlook to pick up the presence details and also allows to chat directly from the outlook. This feature is only available in outlook 2007 and outlook 2010 clients. Below Figure 1 is reference snap.

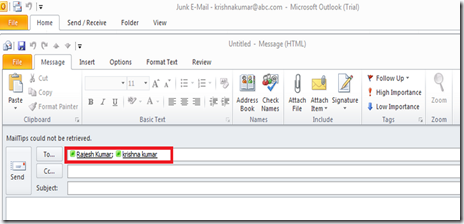

Figure 1. Lync user presence on outlook client
You can configure the bunch of settings on the Lync client to integrate with Microsoft Exchange or Microsoft Outlook. Some of the settings like below Figure 2.
1. Update the presence based on my calendar information.
2. Save instance message conversations in my email conversations history folder etc..

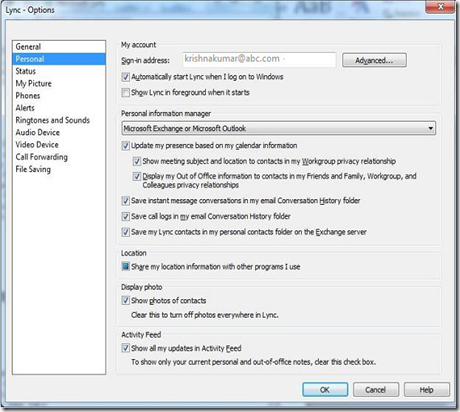

Figure 2. Lync client integration with Microsoft Exchange and Microsoft outlook
Lync 2010 IM and Presence Integration with Outlook Web App
Lync 2010 IM and presence with outlook Web App is not automatically integrated. Specific configuration has to be performed.
Prerequisites:
1. Deployed Microsoft Exchange Server 2010 and Lync Server 2010.
2. Lync Frontend pool where user is located and client Access server can connect
3. Lync and mailbox enabled users
4. Exchange Certificate to be configured with Lync for integration (Make sure CA is trusted by both Exchange 2010 and Lync 2010)
Preparing the CAS servers for the integration
1. Download CWAOWASSPMain.msi from Microsoft Office Communications Server 2010 R2 Web Service Provider and extract the file “c:\Web Service provider Installer Package” and it will extract below mentioned files. Execute and install “CWAOWAASSP.msi”
1. CWAOWAASSP.msi
2. Donnetfx35setup.exe
3. UcamRedist.msi
4. Vcredist_x64.exe
2. Download and Install the hotfix for OCS 2007 R2 web service provider from OCS 2007 R2 Web Service Provider Hotfix
3. Update Unified Communications Managed API 2.0 Redist (64 Bit) from Hotfix KB 2282949
Configuring Exchange 2010
1. Get the exchange certificate using the below PowerShell command
$Excert = (Get-ExchangeCertificate | Where {$_.Services -like “*IIS*”}).Thumbprint
$Excert
2. Using the above exchange certificate configure the OWA virtual directory. Need to make sure to provide appropriate parameter “Instantmessagingservername” with front end pool name. In the below example I have given as lynccst.abc.com which is the front end pool name in my lab.
Get-ExchangeServer | Get-OWAVirtualDirectory | Set-OWAVirtualDirectory -InstantMessagingType OCS -InstantMessagingEnabled:$true -InstantMessagingCertificateThumbprint $Excert -InstantMessagingServerName lyncst.abc.com
Configure the Lync 2010

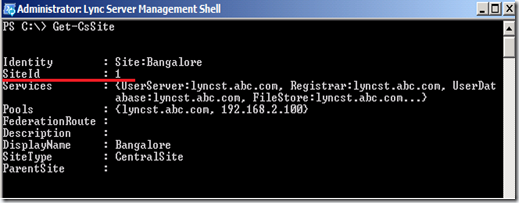

1. Access Lync Server management shell and execute the PowerShell cmdlet Get-Cssite to get the Site ID. In our lab the site ID is 1. Below is reference snap
2. Next we need to configure the Trusted application pool and Add ExchangeOutlookWebAccess as Trusted application

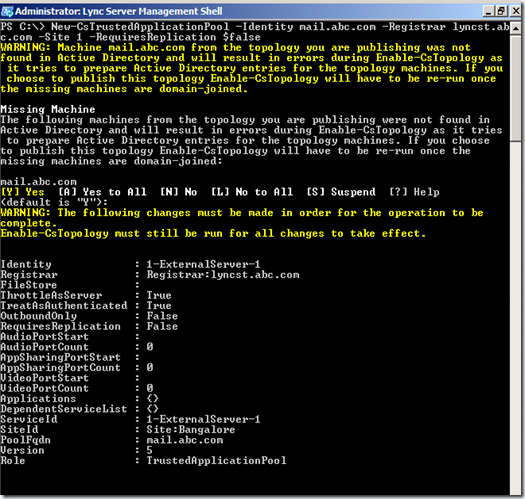

3. To configure Trusted application pool use the below mentioned PowerShell command on Lync management shell with the below parameter. You can ignore the warning message as its refering to the computer object which does not exists in the AD
New-CsTrustedApplicationPool -Identity mail.abc.com -Registrar lyncst.abc.com -Site 1 -RequiresReplication $false

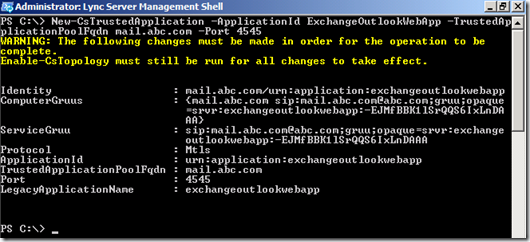

4. Add Exchangeoutlookwebapp to the Trusted application using the PowerShell cmdlet and parameter as defined below
New-CsTrustedApplication -ApplicationId ExchangeOutlookWebApp -TrustedApplicationPoolFqdn mail.abc.com -Port 5060

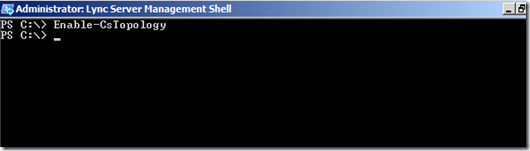

5. Finally its time to publish the topology using the PowerShell cmdlet Enable-CStopology

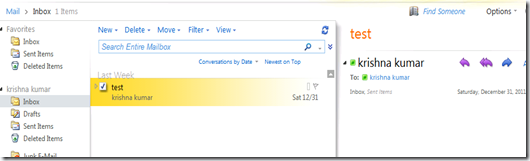

6. login to the OWA and you should be able to view the status of the users.
I think every organization should use this feature to integrate between Lync 2010 and Exchange 2010. This makes life easier where users can initiate chat from any client they are in. In the above example I have defined only the integration with one front end pool from a specific CAS server. If you have multiple front end pool then the connected pool will proxy the request to the other pool. In a bigger organization where you have multiple AD site and frontend pool for each site then you may follow the same progress and configure the CAS server and the frontend pool on the specific site. Its also a best practice to configure in this fashion but there is definitely a additional load on the CAS server.
Reference link : Microsoft TechNet
I hope you can use this in your organization as well
To configure Multiple Exchange 2007 client access server with load balancer we need to Offload Certificate to the load balancer.
Offloading Certificate is the process where we uploaded certificate into the load balancer and this box will accept the request and decrypt the certificate and it will create a new session from the load balancer to the exchange servers. This is called SSL termination where SSL Session from the client is terminated at the LB and new session is created between the Server and Load Balancer
To configure SSL offloading for Outlook Web Access, you must perform the following procedure on each of your Client Access servers. Below is the link which gives the details description on configuring Client Access Servers
http://technet.microsoft.com/en-us/library/bb885060.aspx
Below link on F5 Load balancer which has details description on how to configure for Exchange 2007 Client Access server for OWA, Active Sync, Pop3, IMAP etc
http://www.f5.com/pdf/deployment-guides/f5-exchange07-dg.pdf
Changing password of user can be done throught OWA. If you are running Exchange 2007 environment on Windows 2007 with IIS 7.0 and also has Exchagne 2003 users then changing password throught Exchagne 2007 OWA would not be possbile you will get “404 page not found” Error message.
 As The Change Password feature in Exchange Server 2007 Outlook Web Access does not require the IISADMPWD functionality. IISADMPWD functionality is used to change password in Exchange 2003 servers.Â
Work around solution
1. When user is in inside office network then he/she can access OWA throught http://exchnage2003servername/exchagne/username
2. a. Create the appropriate IISADMPWD folder and virtual directory on each Client Access server
b. Change the registory in Exchange 2003 backend serves – Click Start -> Run -> type regedit -> ok
c. Expand to the this path HKEY_LOCAL_MACHINE\System\CurrentControlSet\Services\MSExchangeWeb\OWA
d. Right click and create new DWORD with the name Disablepassword and set value to 0
e. On each Client access server, open IIS Manager, and then select Web Service Extensions.
f. In the result pane, select Active Server Pages, and then click Allow.
Â
Reference Page : http://technet.microsoft.com/en-us/library/bb684904.aspx
