Office 365 Hybrid Configuring Using Windows Azure – Part 2

Exchange 2007, Exchange 2010, Exchange 2013, Office 365Leave a comment

In the first part of the article series, we created new windows Azure LAB, installed and configured a new domain controller and Exchange server. We also created additional windows 2012 Azure servers for ADFS, ADFS Proxy and Directory synchronization (DirSync). ADFS (Krisadfs.cloupdapp.net) and Dirsync (krisdrisync.cloudapp.net) are joined to the windows domain ‘checkwhatsin.com’. ADFS Proxy (krisadfsproxy.cloudapp.net) is not joined to the domain, since it is designed to be placed in DMZ

Office 365 Hybrid Configuring Using Windows Azure – Part 1

Office 365 Hybrid Configuring Using Windows Azure – Part 3

Office 365 Hybrid Configuring Using Windows Azure – Part 4

Office 365 Hybrid Configuring Using Windows Azure – Part 5

Office 365 Hybrid Configuring Using Windows Azure – Part 6

In this part of the article series, we will perform the activities shown below to configure Single Sign on (SSO). With single sign-on (SSO), users in your organization will be able to use their corporate credentials to access the Office 365 service offerings, thereby, removing the burden of managing multiple logon identities and passwords. Without an SSO, an Office 365 user would have to maintain separate user names and passwords.

I. Installation and configuration of ADFS server

II. Installation and configuration of ADFS proxy server

Installation and configuration of ADFS server

Active Directory Federation Services (AD FS) is a server role in Windows Server that provides Web single-sign-on (SSO) technologies to authenticate a user to multiple Web applications over the life of a single online session. At the outset, we need to create a service account before configuring Exchange

1. Login to the Krisadc.cloudapp.net with the domain admin credentials

2. Using Active Directory users and computers, Create a new service account to configure ADFS federation server and set password never expires

Account name: svr-federation

3. Access DNS Manager and create a new ‘A’ record to point to the internal IP address of ADFS server.

4. Login to ADFS server Krishadfs.cloudapp.net with the domain credentials

5. ADFS server needs a Third Party CA Certificate. Since, we already have wild card certificate configured on the Exchange server, we will have to simply export it from the exchange server and import into the ADFS server

Export the wildcard certificate with the private key from the Exchange 2013 server and copy to the root (C:\) directory of the server krisadfs.cloudapp.net

6. Start the PowerShell on the server krisadfs.cloudap.net and execute the command given below. Type the certificate password which had been used to export the certificate. Given below is the command that imports the certificate into the local computer personal certificate folder

Certutil.exe –f –importpfx c:\checkwhatsin.pfx

7. Install Active Directory Federation Server is as simple as running a PowerShell command. Execute the below PowerShell cmdlet to install ADFS server

Add-WindowsFeature ad-federation-services

8. ADFS server need to be configured once is it installed. Start Server manager and click on the amber symbol -> click on ‘Run the AD FS management snap-in’ to configure it.

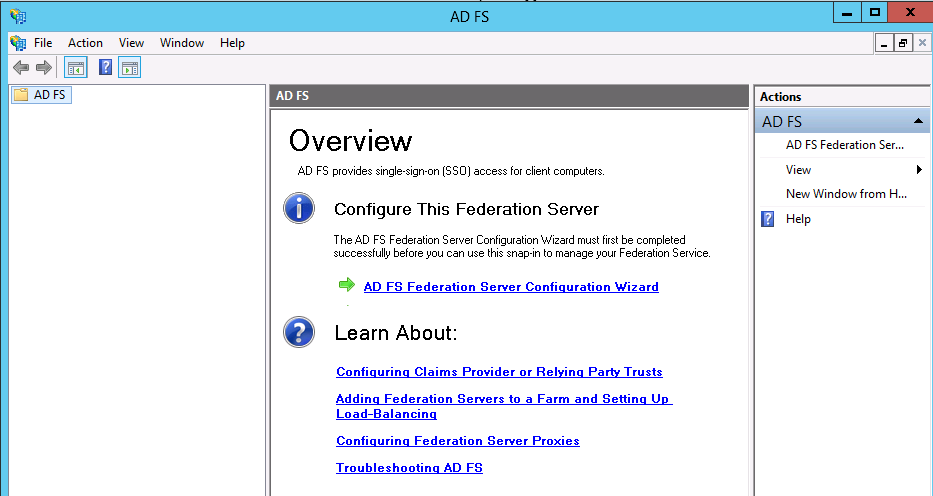

9. It will open a new ADFS Snap-in page. Click on “AD FS federation server configuration Wizard” to start the configuration wizard.

10. To create new federation service, select ‘Create a new Federation service’ on the welcome page and click on ‘Next’

11. Select ‘New Federation Server Farm’ on the Development type page and click on ‘Next’

12. At the Federation Service Name page, select the SSL certificate as ‘Checkwhatsin’ and provide the Federation service name as ‘sts.checkwhatsin.com’ and click on ‘Next’

13. Input the ADFS service account ‘checkwhatsin\svr-federation’ and password at ‘Specify service Account’ page and click on ‘Next’

14. Verify details at the summary page and click on ‘Next’ to start the installation

15. Wait for the installation to be completed and make sure that the entire component configuration is finished and click on ‘Close’ to finish the installation.

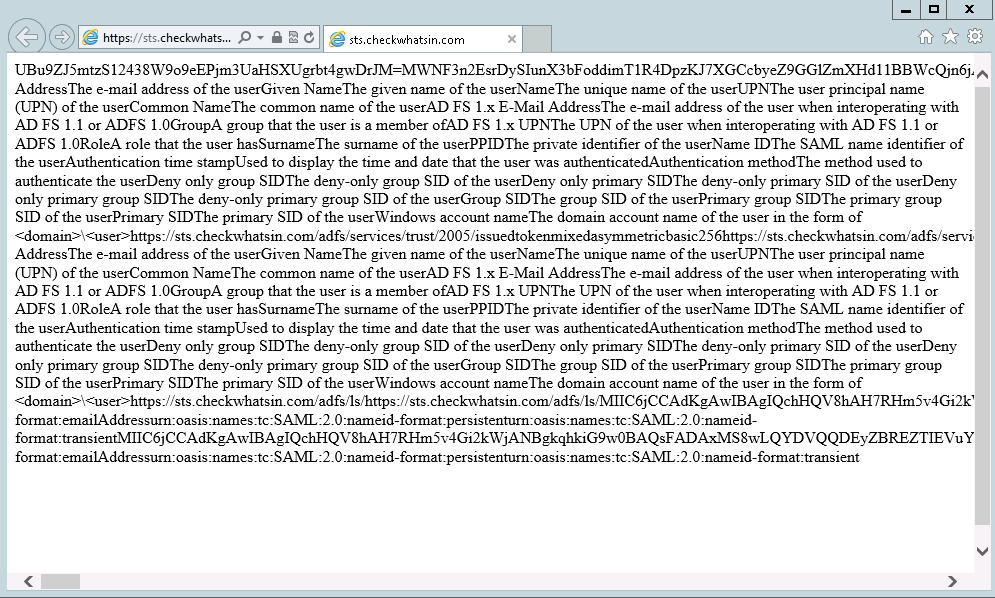

16. To validate the successful installation, click on the below link and make sure you get the page displayed below image on the Internet Explorer

https://sts.chekcwhatsin.com/FederationMetadata/2007-06/FederationMetadata.xml

With this we have created and configured ADFS server and it is ready to use.

Installation and configuration of ADFS proxy server

The AD FS 2.0 Proxy is a service that brokers a connection between external users and internal AD FS 2.0 server. It acts as a reverse proxy and typically resides in your organization’s perimeter network (aka DMZ). Since the Krisadfsproxy.cloudapp.net is not a domain joined computer, it does not know to resolve nodes at the internal network. We need to create a host entry to resolve internal ADFS server.

1. Login to Krisadfsproxy.cloupdapp.net using the local admin credentials

2. Create a manual host entry to connect to point to the AD FS server

Access the ‘Hosts’ file using the notepad from the path C:\Windows\System32\drivers\etc\. Add a new entry to point to the ADFS server IP address with domain name sts.checkwhatsin.com

.

3. ADFS Proxy server also needs a Third Party CA Certificate. Since, we already have wild card certificate on the Exchange server, we will just need to export it and configure on the ADFS server

Export the wildcard certificate with private key from the Exchange 2013 server and copy to the root (C:\) directory of the server krisadfs.cloudapp.net

4. Start the PowerShell on the server krisadfsproxy.cloudapp.net and execute the below command. Type the certificate password which was used to export the certificate. Shown below is the command that imports the certificate into the local computer personal certificate folder

c:\KrishnaCertutil.exe –f –importpfx c:\checkwhatsin.pfx

5. Configure the Imported certificate on the Internet Information Service (IIS) Manager

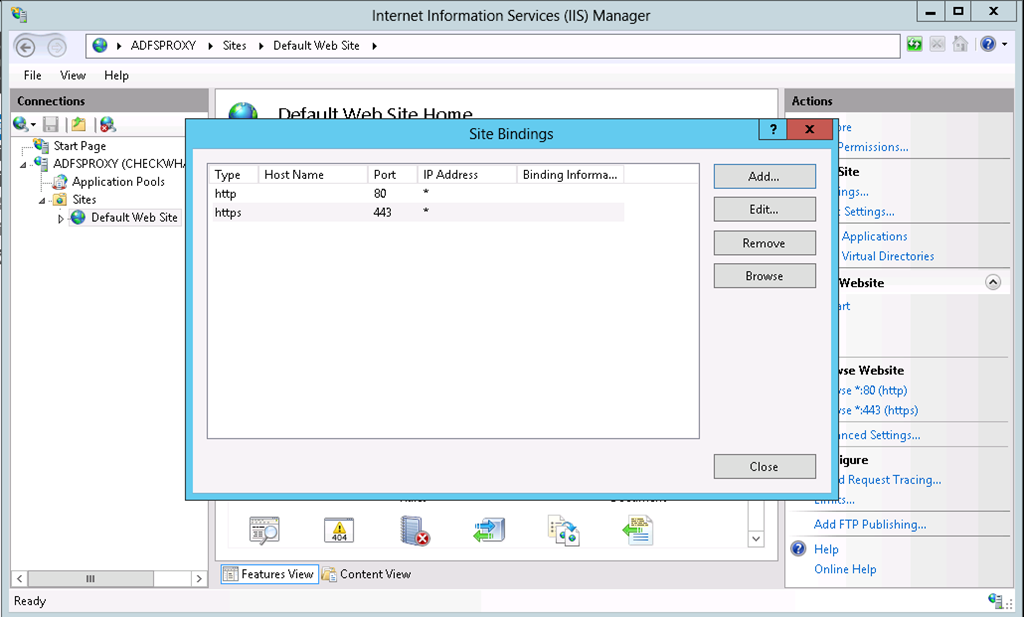

a. Start IIS from the control panel, select ‘Default Web Site’ and select ‘Bindings’ on the action pane

b. Click on ‘Add’ to add a new site binding. Make sure to select the type as “https” and “Checkwhatsin” for SSL certificate and click on “OK”.

c. Click on “Close” to finish the IIS configuration

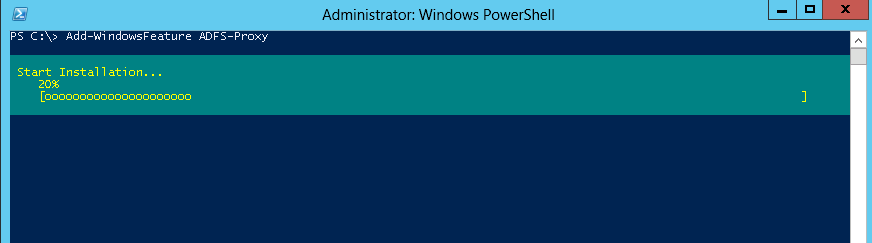

6. Install ADFS proxy using the below PowerShell cmdlet

Add-WindowsFeature ADFS-Proxy

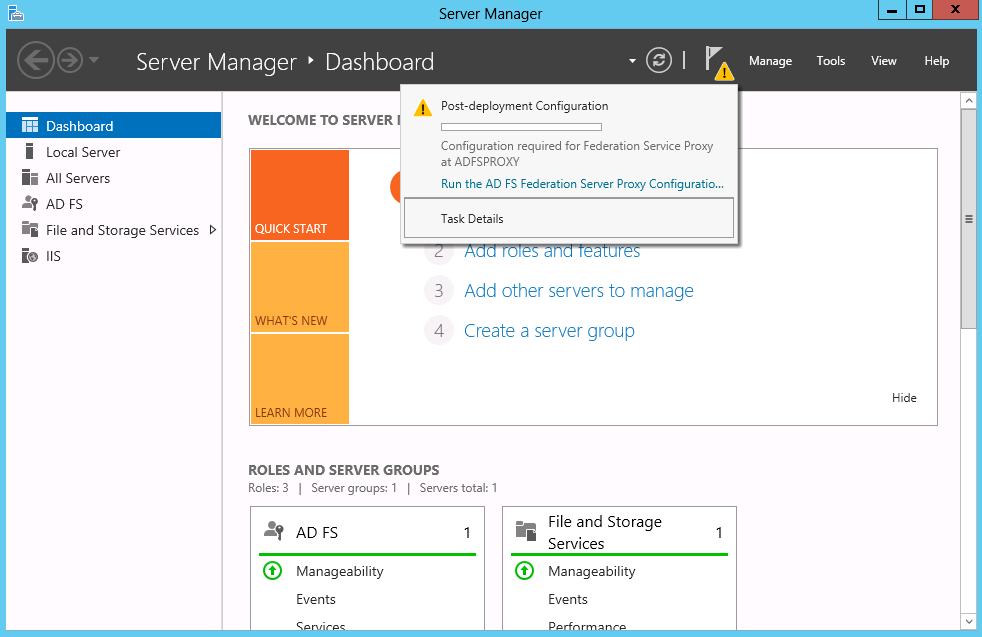

7. Post installation of ADFS Proxy, it needs to be configured. Start ‘Server Manager’ and click on the amber symbol and select ‘Run the AD FS Federation Server Proxy Configuration’

8. On the Welcome page of ‘AD FD Federation Server proxy configuration wizard’ click on ‘Next’

9. Specify Sts.checkwhatsin.com as the Federation Server name and click ‘Test Connection’ to get connection successful status. Click on ‘Next’ to continue

10. Input the ADFS service account credentials at the windows security credentials pop up and click on ‘OK’ to continue.

11. Verify the settings on the ‘Ready to Apply Page’ and click on ‘Next’ to start the configuration

12. Verify the ‘configuration results’ page with the successful completion status and click on ‘Close’

13. Since ADFS proxy server is the internet facing server and ADFS server is configured using STS.checkwhatsin.com as federation name. We need to create a CNAME record at DNS for STS.checkwhatsin.com to point it to ADFS proxy server ‘Krisadfsproxy.cloudapp.net’.

Below is the reference snap from Go Daddy DNS.

With this we have created and configured ADFS and ADFS Proxy server. We have also made all the necessary changes in configuration so as to deploy SSO.

In the next part of the article, we will be completing the configuration of SSO and Directory Sync between Office 365 and on-premises exchange server.

Office 365 Hybrid Configuring Using Windows Azure – Part 1

Office 365 Hybrid Configuring Using Windows Azure – Part 3

Office 365 Hybrid Configuring Using Windows Azure – Part 4

Office 365 Hybrid Configuring Using Windows Azure – Part 5

Office 365 Hybrid Configuring Using Windows Azure – Part 6

Office 365 Hybrid configuring using Windows Azure – Part 1

Exchange 2007, Exchange 2010, Exchange 2013, Office 365Leave a comment

A hybrid deployment provides a wonderful experience for your Office 365 deployment. It enables users to have mailboxes in your on-premises Exchange Server environment and Office 365; find one another in the global address list (GAL); share calendar; send or receive; and reply to emails, regardless of the system your mailbox.

Simulating Office 365 with Hybrid configuration and testing can be a bit challenging, unlike an exchange 2013 lab, where you build a new virtual machine, install exchange 2013, configure it and play. Office 365 hybrid configuration has certain requirements like Office 365 account, certificates, public facing on-premises Exchange, ADFS, Public facing ADFS proxy server etc.

A majority of organizations is now looking for Hybrid solution for the interesting features it offers and has become a mandatory skill set for the Exchange administrator. Microsoft offers 30 days free Office 365 Enterprise E3 account and free 30 days Widows Azure trail with a $200 credit to create and configure virtual machines. In addition to the specified trial accounts, you also need the following listed particulars to start and build your own Office 365 – Exchange 2013 Hybrid lab environment using Windows Azure

1. Domain name: Register a domain name using ‘Go daddy’. We would need to own and manage a domain DNS. You can register a domain from any ISP. With Office 365 and Go daddy, some of the DNS registration has been made automated. In this lab, we will be using the domain name “CHECKWHATSIN.COM” which is registered using Go daddy.

2. Third Party SAN Certificate: A Third Party SAN certificate is required for Exchange server and Federation server. The certificate has to match the registered domain name. We can use SAN certificate with multiple SAN or a wildcard certificate. In this lab, we will be using wild card certificate with the name – *.Checkwhatsin.com

In this first part of the article series, you will perform the tasks given below:

I. Creating and configuring Exchange On-premises Serves at Windows Azure

II. Registering and configuring Office 365 trial account

Other part of the articles are be found below

Office 365 Hybrid Configuring Using Windows Azure – Part 2

Office 365 Hybrid Configuring Using Windows Azure – Part 3

Office 365 Hybrid Configuring Using Windows Azure – Part 4

Office 365 Hybrid Configuring Using Windows Azure – Part 5

Office 365 Hybrid Configuring Using Windows Azure – Part 6

Creating and configuring Exchange On-premises Serves at Windows Azure

1. Create a Windows Azure Trail account

2. Login to the Azure portal and create:

  • A new Affinity Group
  • A new Storage and link to the affinity group
  • A new virtual network 3. Create two “SMALL” VM’s for Domain Controller and Exchange 2013 server with base OS Windows 2012. Shown below is the screen shot of the lab with the server named Krisdc01.cloudapp.net and KrisExch01.cloudapp.net. These are the names used to connect from internet.4. Promote the new domain controller on server Krisdc01.cloudapp.net with the new domain name ‘CHECKWHATSIN.COM’ 5. Join the server KrisExch01.cloudapp.net to the domain ‘CHECKWHATSIN.COM’ 6. Install and configure new Exchange 2013 on the server KrisExch01.cloudapp.net7. Once the Domain Controller and Exchange is installed and configured, we need to configure DNS with MX and CName record.

    8. Login to Go daddy DNS manager for checkwhatsin.com

    9. Create a new MX record to point to KrishExch01.cloupdapp.net to allow users to send and receive email from internet

    10. Create a new CName for mail.checkwhatsin.com to point to KrisExch01.cloudapp.net. This is to allow users to connect to Outlook Web App (OWA) from internet.

    11. Create a new CName record for autodiscover.checkwhatsin.com to point to KrishExch01.cloudapp.net. This is to allow users Internet users to perform autodiscover for client configuration.

    12. Once the DNS is registered, we should be able perform the autodiscover and other test using Microsoft Remote Connectivity Analyzer below

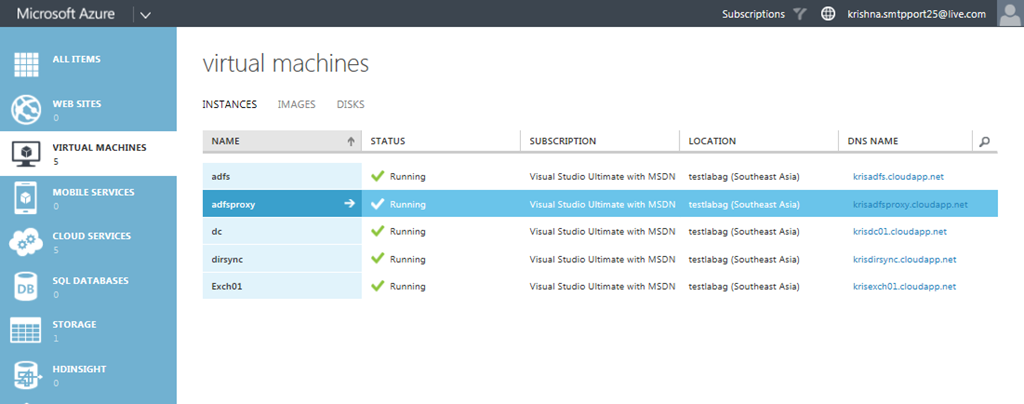

    13. Create new 3 additional “SMALL” VM with Windows 2012 OS for Active Directory Federation Server (ADFS), Active Directory Federation Server Proxy (ADFS Proxy) and Directory Sync (DirSync) Server role. Below is the Windows Azure virtual machines with three additional VM – Krisadfs.cloupapp.net, KrisAdfsproxy.cloudapp.net and Krisdirsync.cloudapp.net

    Registering and configuring Office 365 trial account

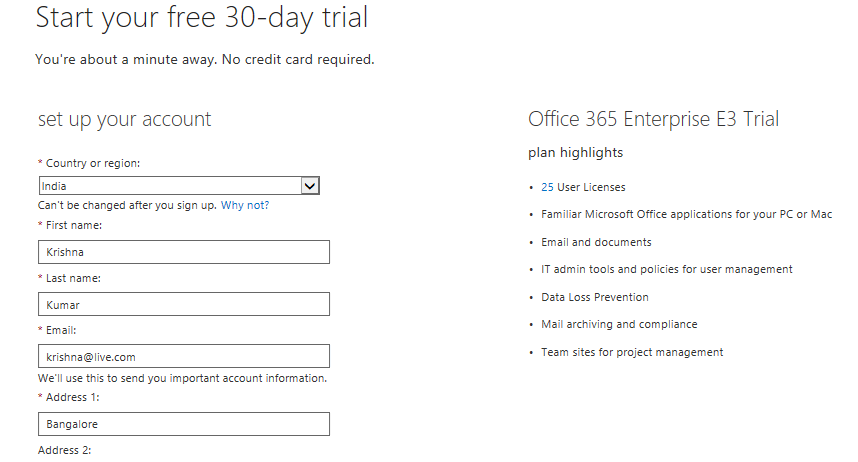

    1. Connect to the below Office 365 URL to register for a new Office 365 Enterprise E3 account

    http://office.microsoft.com/en-in/business/compare-office-365-for-business-plans-FX102918419.aspx

    2. Provided all the necessary administrator account information

    3. Provide the account and the domain name to register. Verify your phone number by sending a txt message or call and click on “create an account”.

    4. Below is the first look of Office 365

    5. Click on the setup on the left ribbon and click on “Add domain”

    6. Click on Start Step 1 to specify the domain name and confirm the ownership

    7. Input the domain name as ‘Checkwhatsin.com and click on ‘Next’

    8. For auto DNS configuration, click on “Confirm Ownership”.

    9. It connects the Go daddy with the credentials

    10. Click on “Accept” to allow Office 365 to create the new TXT record for the domain ‘Checkwhatsin.com’ and to confirm the ownership.

    11. This completed the domain verification process and click “Finish” to return to the main screen

    12. We can verify again by clicking on the ‘setup’ on the left bar to see checkwhatsin.com is added and status is ‘domain verified’.

    13. We can also verify the TXT record entry created by Office 365 at the Go daddy DNS for the domain ‘Checkwhatsin.com’. Login to Checkwhatsin.com DNS manager to view the TXT entry for Office 365 validation.

    14. From the above point 12, we still have the setup to continue. Click on complete setup to get the below page and click on “Start Step 2”

    15. Select “I don’t want to add users right now” and click on Next

    16. Since we will be configuring ADFS and single sign-on (SSO), we need the hold the Step 3 and revisit this part at the Part 3 of the article.

    With this we have created and configured on-premises Exchange 2013 using windows Azure and also created the Office 365 trail account with the addition and configuration of new domain checkwahtsin.com.

    In the next part, we will be creating and configuring ADFS and ADFS proxy servers which is deployed with the name KrisADFS.cloudapp.net and Krisproxy.cloudapp.net

           Other part of the articles are be found below

Office 365 Hybrid Configuring Using Windows Azure – Part 2

Office 365 Hybrid Configuring Using Windows Azure – Part 3

Office 365 Hybrid Configuring Using Windows Azure – Part 4

Office 365 Hybrid Configuring Using Windows Azure – Part 5

Office 365 Hybrid Configuring Using Windows Azure – Part 6

Windows Password Change Notification Script

Exchange 2007, VB Scripts, Windows 20084 Comments

If your orginization has users who is working outside office network and they normally access email through pop3 then chances that they do not have any notification on password change. This script helps to intimate the give list of users to change the password.

Please find the copy of the script in the below link

http://powershell.com/cs/members/smtpport25.wordpress/files/PasswordChangeNotification.txt.aspx
